Polymer opticsComponents for Complex Applications

Optical plastic components in precision

Plastics are replacing traditional materials in a wide variety of applications. This also applies to glass in optics. Whereas polymer optics used to be found in simple applications, today it is impossible to imagine various growth markets without them. They are integrated into highly complex applications; the possible uses are enormous. Optics made from transparent polymers offer many advantages: great design freedom, flexible moldability, high breaking resistance, low part weights, low material costs and economical series production.

As experts in plastic optics, we know the properties of transparent plastics inside out and push the limits of what is feasible in plastics technology. From optical development to design, prototype production, toolmaking, injection molding, optical coating and assembly, we cover the entire product development process in-house. We create future-oriented solutions for our customers and contribute to technological progress.

LED Beleuchtungsoptik | Freiformlinse

Plastic Optical Components from VIAOPTIC


Spherical lenses

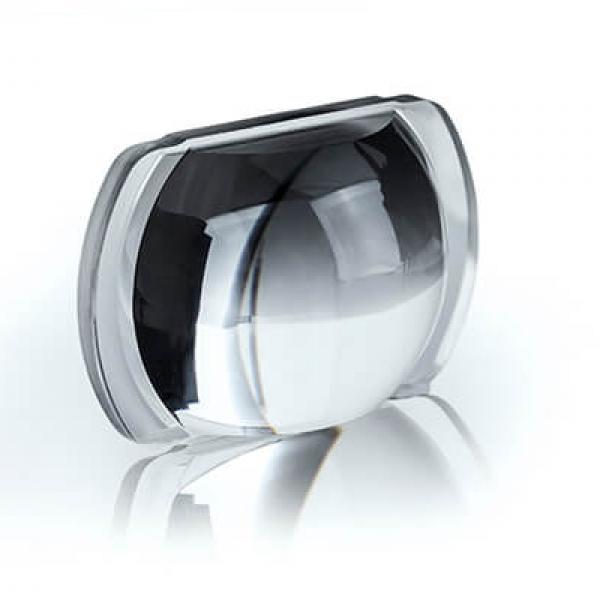

Aspherical lenses

Freeform lenses

Fresnel lenses

Cylindrical lenses

Lens arrays

Lightguides

Prisms

Mirrors

Microstructures

Diffractive optics

Advantages of Plastic Optics

It is not without reason that plastic is considered to be the driver of many technological developments. Due to the special material properties, optics made of plastic offer more diverse possibilities compared to glass optics.


Wide range of design options and high design freedom

Possibility to combine several optical surfaces

Possibility to integrate mechanical functionalities

Low part weights and high breaking strength

Low material costs and economical series production

Increased performance through optical coatings

Optical plastics for individual applications

Material selection is crucial to the efficiency of any plastic optics and is therefore of fundamental importance. With their experience, our optics developers and plastics engineers will always find the optimal solution for your specific requirement, thus increasing your added value effectively.

The following table provides an initial overview of the properties of optical plastic materials.
The values are to be understood as a guide and may differ depending on the plastic supplier. Depending on the application, many other factors play a role.

We will support you in selecting the best material for your application.

Optical plastics for individual applications
Material Temperaturbeständigkeit (°C) Dichte (g/cm³) Brechzahl (n) Abbe-Zahl
PMMA | Polymethyl methacrylate 108 1,19 1,49 57
PC | Polycarbonate 137 1,2 1,58 34
COP | Cycloolefin Polymer 136 1,01 1,53 56
COC | Cycloolefin Copolymer 127 - 150 1,02 1,53 56
SAN | Styrene Acrylonitrile 99 1,08 1,569 37
PMMI | Polymethyl methacrylimide 140 1,21 1,53 41
PC HT | Polycarbonate High Temperature 165 -185 1,21 1,58-1,6 30
PSU | Polysulfone 181 1,38 1,65 23
PA-xy | Polyamide 145 1,02 1,52 52
PC high n | Polycarbonate High Refractive 125 - 135 1,25 1,66 20
PET high n | Polyester High Refractive 115 - 125 1,22 1,64 22
Download overview
